Usage

Actor: An abstraction of users or other systems that interact with the target system

Use Case: A pattern for interaction between the system and actors in the application domain

Involve the user, by presenting use cases through prototypes.

To illustrate relations between actors and use-cases you can use either action table or use case diagrams. UML recommends use-case diagrams, while the book prefers actor table (because of space).

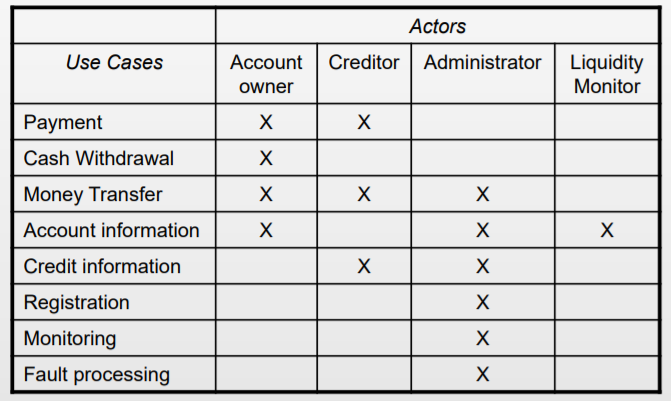

Actor table example for automatic payment system:

Find Actors and Use Cases

Who will use the system?
How will it be used?

If several roles appear the same to the system, consider consolidating them into one.

Actor Specifications

The target system’s actors described in specifications.

Consists of 3 parts: goal, characteristics, and examples.

Describes (as precisely as possible) the actor’s role in relation to the target system.

Example from automatic payment system

1537993893114

Use Case Specification | Statechart Diagram

Use case specification is more detailed than statechart diagram - Should not contain unnecessary details thought!

Use case specification example from automatic payment system:

1537994272105

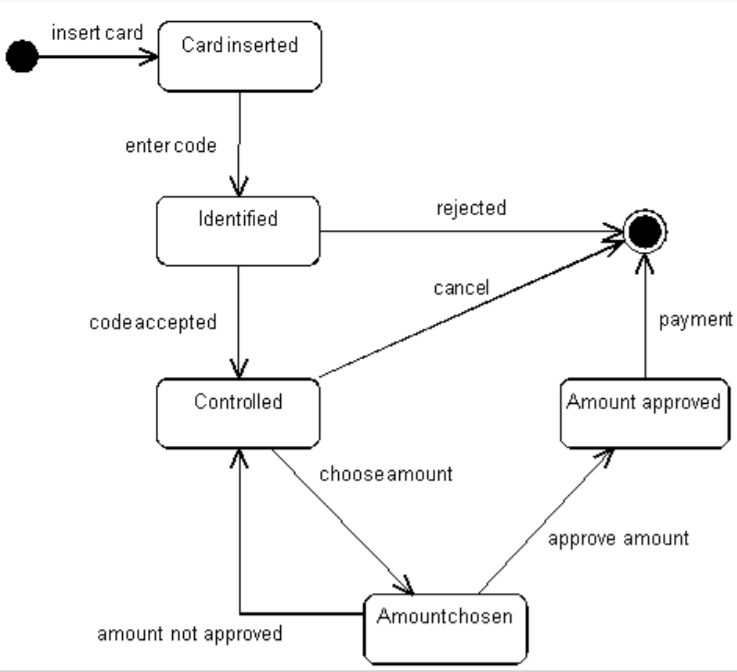

Statechart diagram example from automatic payment system:
